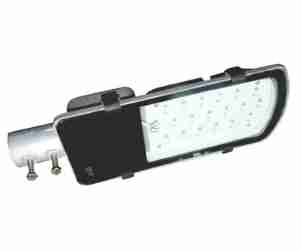

ELED12, 24, 36, 48 - (LED Solar Street Light)
Material Features:
- Stand alone system
- Elegant & robust design.
- Automatic dusk to dawn controller (DTDC).
- Autonomy for No sunshine days.
- No external cabling.
- Galvanized Steel or Mild Steel pole with corrosion resistant Powder Paint.
- Weatherproof Lantern.
Applicable places:
-Illumination of Building facade, Billboards, Sculptures etc.
Applications :
Solar Street Lights are widely installed for Lighting Streets,
Residential Area, Parks and Remote area, where transmitting
power is very difficult & expensive like mountainous area, Forest
area, Desert area etc.
| MODEL | LED Solar Street lighting* | |||
| ELED12 | ELED24 | ELED36 | ELED48 | |
| Light Wattage (W) |
12W | 24W | 36W | 48W |
| SPV Module (Wp) |
1X70Wp | 140Wp | 1X200Wp | 2X150Wp |
| Storage Battery (Ah) |
1X12V 70Ah |
2X12V 70Ah |
2X12V 100Ah |
2X12V 150Ah |
| Luminous Flux (Lm) |
1200lm | 2400lm | 3600lm | 4800lm |
| Daily Usage Capacity |
Dusk to Dawn | |||
| Storage Autonomy |
3~4 Days | 3~4 Days | 3~4 Days | 3~4 Days |
| PWM charge Controller |
6 Amps | 10 Amps | 15 Amps | 20 Amps |
| Height of Pole | 4.5 Mtr | 4.5 / 5 Mtr | 5 / 6 Mtr | 6 / 8 Mtr |
Note* :-
We offer a variety of LED / CFL Solar Street Lights as per the table
given below. Moreover we make as per the client's Requirement /
Specification.
